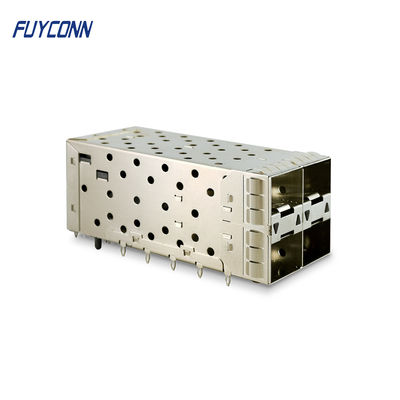

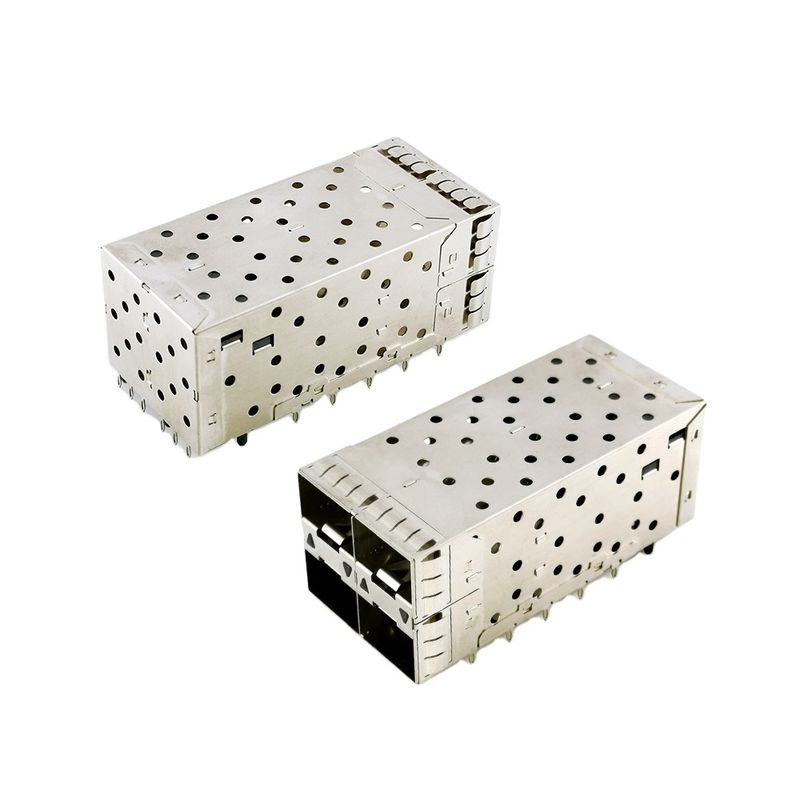

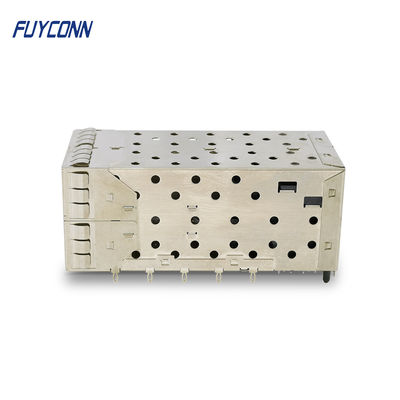

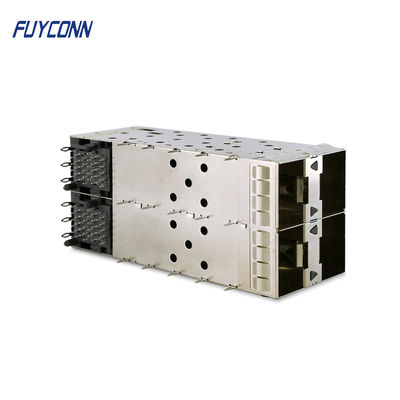

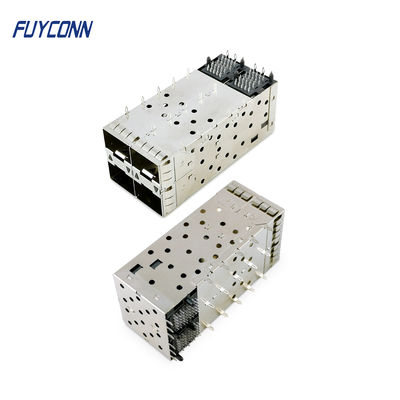

SFP+ 2x2 Press-Fit Connector 80pin Small Form-factor Pluggable Plus Stacked 2-by-1 Multi-Port SFP+ Connector w/ Lightpipe Ports
SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE 802.3 and SFF-8472 protocol specifications, SFP module connectors can handle up to 4.25Gb/s with greater port density than GBIC, earning them the nickname "mini GBIC."
To meet the demand for faster transmission speeds, SFP+ (or SFP10) was introduced in 2006 as an extension of SFP. Based on IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, SFP+ supports data rates up to 10Gb/s and is compatible with Fibre Channel, 10GbE, SONET, OTN, and other communication standards. While similar in size to SFP, the primary difference is transmission speed. Both SFP and SFP+ are available in copper and optical variants.
Product Features
| 1. Product Name: |
SFP Connector |
| 2. Product Line: |
Small Form-factor Pluggable |
| 3. Connector Gender: |
Female Centronic Connector |
| 4. Contact Type: |
Small Form-factor Pluggable |
| 5. Number of Positions: |
80pin |
| 6. Ports: |
2*2 4 Ports |
| 7. Contact Material: |
Phosphor Bronze |
| 8. Finish: |
Nickel Silver |
| 9. Insulation Material: |
PBT |
| 10. Lightpipe: |
Included |
Electrical Specifications
| 1. Current Rating: |
1AMP |
| 2. Withstanding Voltage: |
500V for one minute |
| 3. Insulator Resistance: |
500MΩ min (at DC500V) |
| 4. Contact Resistance: |
35MΩ Max |
| 5. Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
