2x4 Port Female SFP Connector 160 Pin with Light Pipe

2x4 Port Female SFP Connector 160 Pin with Light Pipe
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe

Büyük resim :  2x4 Port Female SFP Connector 160 Pin with Light Pipe

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: FUYCONN
Model numarası: FUYSFP2015-28
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100
Fiyat: $15
İletişim

2x4 Port Female SFP Connector 160 Pin with Light Pipe

Açıklama
Port sayısı: 2*4 Çift bağlantı noktası terminal sayısı: 160 pim
Kontak pimi Malzemesi: Fosfor bronz İzolatör malzemesi: PBT
Renk: Nick Silver Ayak Tipi: Basın Pimi
Işık borusu: hafif boru ile Mevcut Derecelendirme: 1AMP
Dayanma Gerilimi: Bir dakika 500V İzolatör direnci: 500mΩ dk (DC500V'de)
Temas direnci: 35mΩ maks. Çalışma sıcaklığı: -55°C ila +105°C
Bağlayıcı cinsiyet: Dişi İletişim Türü: Küçük form faktörü takılabilir
Sona ermek: Nikel gümüşü
Vurgulamak:

2x4 port SFP connector

,

160 pin SFP connector

,

SFP connector with light pipe

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light
Product Overview
The 2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector is a high-performance Small Form-factor Pluggable (SFP) module connector designed for data communication applications. First introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while supporting data rates up to 4.25Gb/s. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s.
Key Features
Product Name: SFP Connector
Product Line: Small Form-factor Pluggable
Connector Gender: Female Centronic Connector
Number of Positions: 160pin
Ports: 2*4 (8 Ports)
Contact Material: Phosphor Bronze
Finish: Nickel Silver
Insulation Material: PBT
Lightpipe: Included
Electrical Specifications
Current Rating: 1AMP
Withstanding Voltage: 500V for one minute
Insulator Resistance: 500MΩ min (at DC500V)
Contact Resistance: 35MΩ Max
Operation Temperature: -55°C to +105°C
Product Images

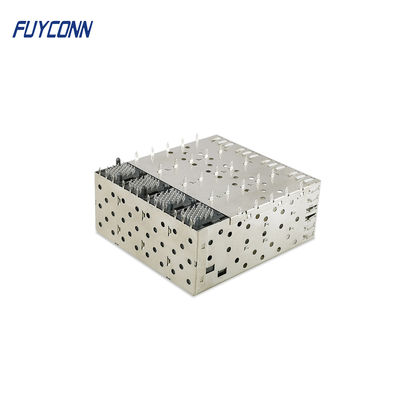

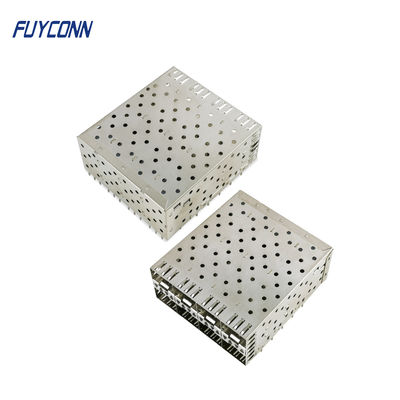

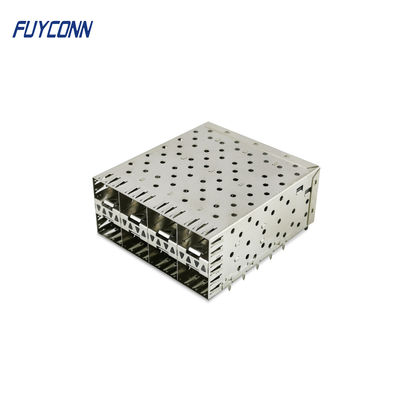

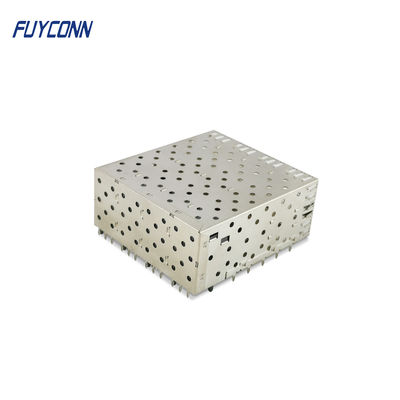

2x4 Port Female SFP Connector 160 Pin with Light Pipe 0
2x4 Port Female SFP Connector 160 Pin with Light Pipe 1
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2
Applications
  • Networking equipment
  • Routers/Switches
  • Data/Communications systems
  • High-end servers
  • Telecommunications hardware
  • Fibre Channel and Gigabit Ethernet systems
Packaging & Shipping
Our products are carefully packaged to ensure safe delivery:
  • Vacuum Tray
  • PE Bag
  • Strong bags/boxes/cartons
  • PE Bag + Strips
2x4 Port Female SFP Connector 160 Pin with Light Pipe 3
2x4 Port Female SFP Connector 160 Pin with Light Pipe 4
About Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines. All products are UL- and SGS-certified, RoHS compliant, with a defect rate below 0.5%.
Why Choose Us
  • 16 years Centronic Connector production experience
  • Experienced R&D team
  • Thousands of molds available
  • UL Certified, ROHS compliant
  • Factory-direct pricing
  • Fast sample service (within 2 days)
  • Short lead times (1 week for standard products)
  • No MOQ requirements
  • Custom branding available
  • Full production control from molding to assembly
Certifications
2x4 Port Female SFP Connector 160 Pin with Light Pipe 5
2x4 Port Female SFP Connector 160 Pin with Light Pipe 6
Contact Information

Grace Zhong

Wechat: +86 18925547246

Skype: fuyconn001

Phone: +86 18925547246

Office Phone: +86 0769 83690889

Address: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province, China
